5 axis 3D cutting head
The 3D cutting waterjet cutting machine , that is, the 5-axis degree angle cutting, the cutting heed can cut the workpiece surface at different angles ( within+/- 65 degrees) , and can cut the cutting cross section of the vertical, the inclined, and the gradual angle.

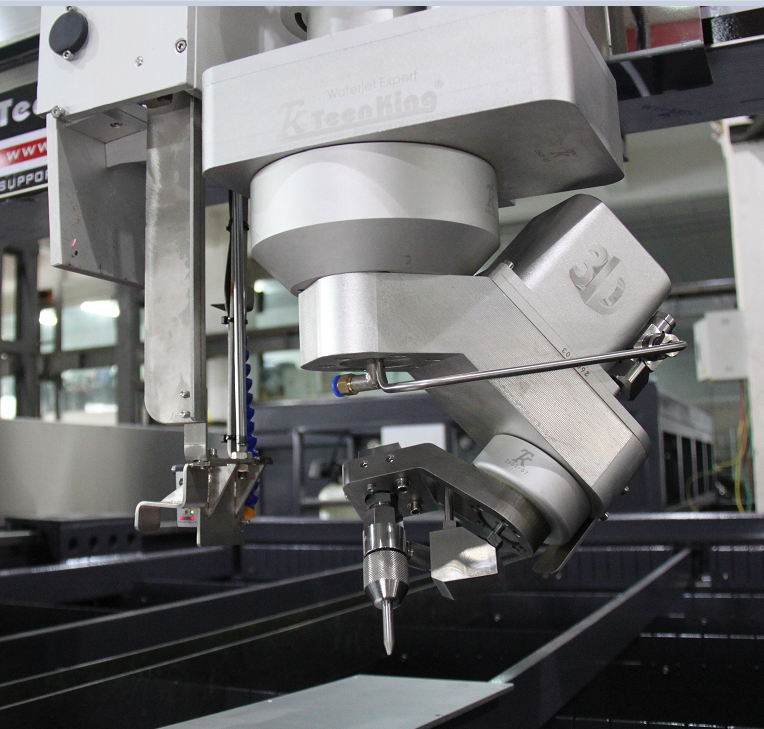

5 axis 3D head with height tracking system(Optional)/5Axis 3D head.
Teenking 3D waterjet is the most powerful 5 axis cutting system in the waterjet cutting industry. It can eliminate the waterjet kerf taper and corner large taper cut on flat or unflat or even 3D surface
|Maximum Travel Of A-Axis:||+/-65 degrees (extendable up to 90 degrees)|
|Maximum Travel Of C-Axis:||Infinite (no limitation)|
|Maximum Speed In A/C Axis:||180 degrees/second|
|Tolerance In A/C Axis:||≤+/-1.5 arc/min|
3D HEAD MAIN APPLICATIONS:
●vertical kerf taper compensate,
●stone or ceramic parquet cutting,
●cut with bevel angles up to 65 degrees(extendable upto 900 when necessary)
●cutting on 3D surface with/without bevel.
Dynamic angular HARMONIC DRIVE motion is achieved using representing the top accuracy of the industry.
Support by IGEMS 3D/CAM/Nesting software, TEENKING 3D waterjet cutting machine become the most powerful cutting machine of the waterjet industry.
Teenking 3D water jet is able to cut to +/-65 degree and even more. In addition, it has an infinite rotary C-axis which makes Teenking 3D water jet success and the best selling on global market.
5 axis 3D head with height tracking system(Optional)
Functions of height tracker:
●auto detect work piece and set Z to zero by start of program
●auto detect work piece and set Z to zero by partwise of program
●auto detect work piece and reset Z to zero during cutting by preset distance(this option is not recommend for bevel cutting)
5 axis 3D head with laser height scanning system(Optional)
Functions of laser height scanner:
●auto scan the whole work piece surface and set height of surface in to CNC, and CNC control the height of program according to the height of scanned surface
●auto scan the height of cutting path on the work piece surface and set in to CNC, CNC control the height of program according to the height of scanned path
these functions can accurately control cutting height, especially benefit for big bevel cutting, example cutting on 45 degrees bevel, the change of height of nozzle will change the size of part, this is the only way can maintain good accuracy of part for bevel cutting
